In-Line Regulators
85.900 - 85.913 Preset Pressure Regulator for Water - ECOREG
General Instructions
The regulator is designed for use with drinking water, water mains, or compressed air.
Please read and observe these instructions in their entirety. This will ensure long, trouble-free operation of the device.

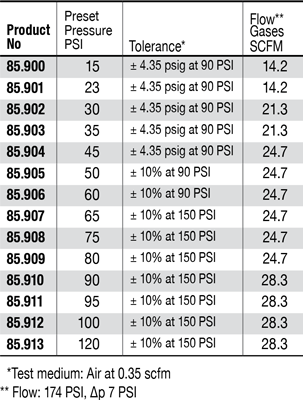

Specifications
Compliance
Regulators meet NSF-61 and NSF-169 certifications.
Installation
- Ensure that the entire system (pipelines, etc.) is clean and in proper working order before installation.
- The direction of flow is indicated by an arrow on the regulator’s surface.
- Install the regulator as close as possible to the consumption point to prevent pressure loss in long pipes and hoses.
- The regulator can be mounted in any orientation.
- If connected to a water supply system, ensure a backflow prevention device is installed.
Operation
- Use a <50 micron prefilter to ensure problem-free operation and full functionality.
- The regulator's output pressure is permanently set and cannot be adjusted.
- The pressure value is imprinted on the body (PSI).
- The regulator maintains a constant pressure despite normal system fluctuations.
- The regulator has no exhaust.
- Downstream tools must be relieved after being locked or disconnected from the supply.
Maintenance
The pressure regulator is maintenance-free and does not require other measures.
85.920 - 85.933 Preset Pressure Regulator for Oxygen - OXYREG
General Instructions
The regulator is intended for use with oxygen.
Please read and observe these instructions in their entirety. This will ensure long, trouble-free operation of the device.
Specifications
Installation
- Ensure the entire system (pipelines, etc.) is clean and in proper working order before installation.
- The direction of flow is indicated by an arrow on the regulator’s surface.
- Install the regulator as close as possible to the consumption point to prevent pressure loss in long pipes and hoses.
- The regulator can be mounted in any orientation.
Operation
- Use a <50 micron prefilter to ensure problem-free operation and full functionality.
- The regulator's output pressure is permanently set and cannot be adjusted.
- The pressure value is imprinted on the body (PSI).
- The regulator maintains a constant pressure despite normal system fluctuations.
- The regulator has no exhaust.
- Downstream tools must be relieved after being locked or disconnected from the supply.
Maintenance
The pressure regulator is maintenance-free and does not require other measures.
