General Information
This manual must be read by everyone who installs, operates, or maintains this regulator. It provides essential information regarding the technical specifications, operation, and maintenance of the Toolreg® regulator. Please read and follow these instructions carefully to ensure safe and efficient use, ensuring the regulator operates malfunction-free over a long period.
Compliance
The Toolreg® regulator complies with ISO-4414, OSHA-29CFR, OHSAS-18001, Machine Directive, PUWER, and H&S Standards to ensure a safe working environment.
Installation
- Intended Use: The regulator is designed for use with compressed air.
- Clean Components: Ensure that all system components, including pipes, are clean and in proper working order before installation.

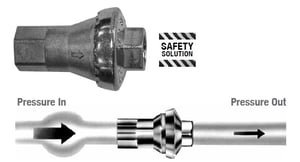

- Flow Direction: The direction of flow is indicated by an arrow on the surface of the regulator.
- Placement: To minimize pressure loss, install the regulator as close as possible to the point of use. The regulator can be mounted in any orientation.
- Fastening: Use appropriate tools to securely fasten the regulator during installation.
Operation
- Prefilter Recommendation: For optimal performance, use a prefilter with a rating of less than 50 microns.
- Output Pressure: The regulator’s output pressure is preset and non-adjustable. The preset pressure value (in PSI) is imprinted on the input side.
- Constant Pressure: The regulator maintains a constant pressure despite normal system pressure fluctuations.
- Venting Function: The regulator features an automatic venting function. When the input pressure is removed, the output pressure is vented from the regulator and any connected downstream tool.
Maintenance
The Toolreg® regulator is maintenance-free and requires no additional measures.
Warnings
- The regulator automatically vents if the compressed air supply is removed, making it especially suitable for tools using compressed air, such as nailers, to prevent accidental operation.
- By following these instructions, you can ensure long-term, trouble-free operation of your Toolreg® regulator.
General Information
This manual must be read by everyone who installs, operates, or maintains this regulator. It provides essential information regarding the installation, operation, and maintenance of the SaveAir ® regulator. Please read and follow these instructions carefully to ensure safe and efficient use of the regulator.
Compliance
The SaveAir ® regulator complies with ISO-4414, OSHA-29CFR, and OHSAS-18001 standards for maintaining a safe working environment.
Installation
- Intended Use: The regulator is designed for use with compressed air or neutral gases.
- Clean Components: Ensure that all system components, including pipes, are flawlessly clean before assembly.
- Flow Direction: The flow direction is indicated by an arrow on the regulator surface.
- Placement: To minimize pressure loss, mount the regulator as close as possible to the point of use. The regulator can be installed in any position.
- Assembly: Use a hexagonal key to secure the regulator during assembly. Do not transfer any forces to the ball riveting.
Operation
- Prefilter Recommendation: For optimal performance, use a prefilter with a rating of less than 50 microns.
- Output Pressure: The regulator’s output pressure is preset and non-adjustable. The preset pressure value (in PSI) is stamped on the output side of the regulator.
- Constant Pressure: The regulator maintains a constant pressure regardless of normal system pressure fluctuations. Note that the regulator does not have an exhaust function.
Maintenance
The SaveAir ® regulator is maintenance-free and requires no additional action.
Warnings
- The pressure regulator is maintenance-free and requires no further action.
- Ensure to follow all instructions and safety guidelines for safe and effective use.
- By following these instructions, you can ensure long-term, malfunction-free operation of your SaveAir ® regulator.
